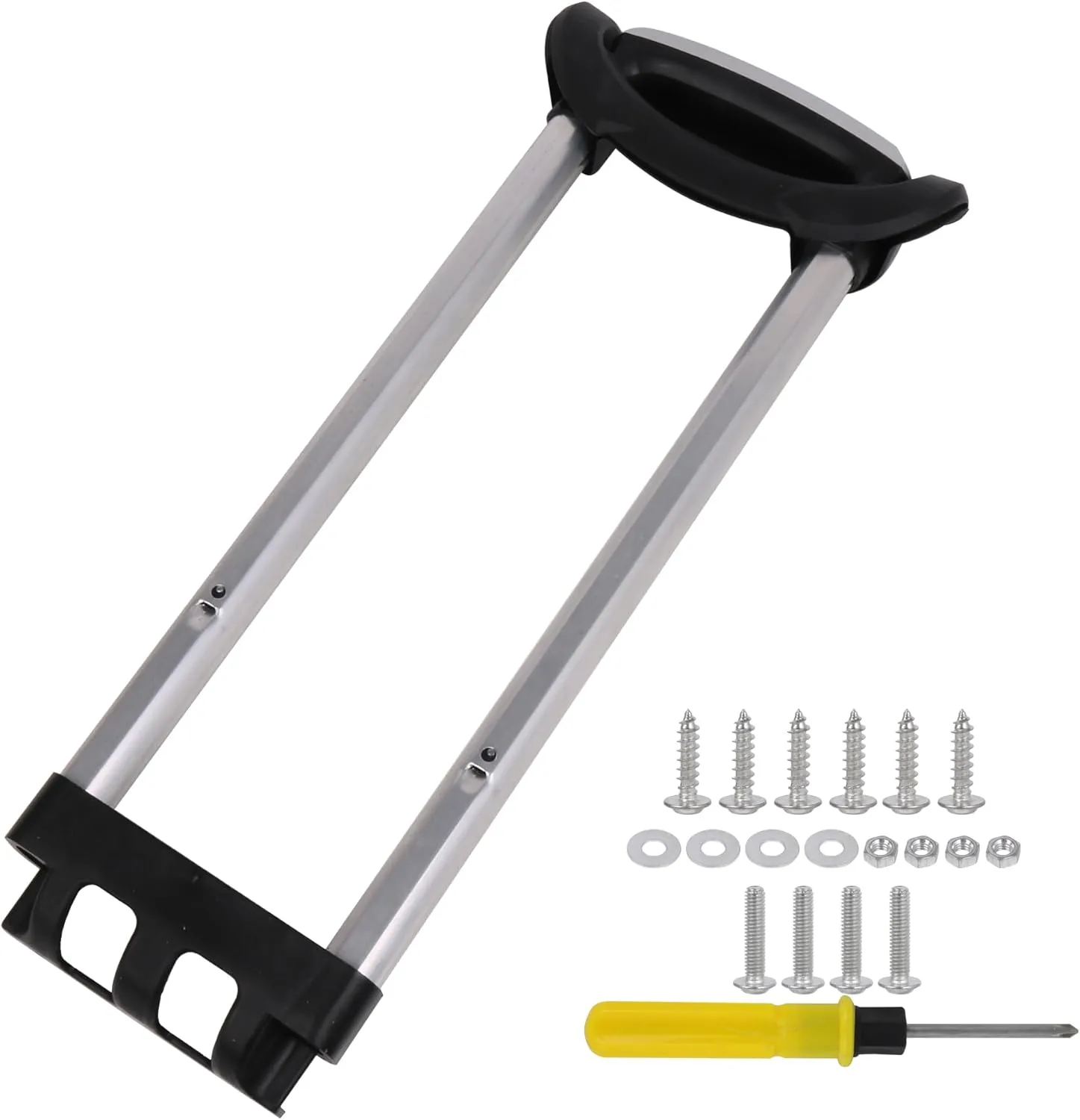

"Features:
1.Suitable for 20 inch luggage.
2.Made of plastic, with aluminium alloy rod.
3.For replacing your old or broken telescopic handle instead of buying a new luggage.

Note:
1.Please allow 1-3cm error due to manual measurements.
2.Please check the size and style carefully before purchase.
3.Please be sure you have basic DIY skills.

Specifications:
Material:Plastic Aluminium Alloy

Color: silver black
Material: plastic aluminum alloy
Product size: Manual measurement error 1CM-2CM
Fixed length of tie rod: 51CM/20.08"
Stretchable length: 52CM/20.47
Top cover width: 22CM/8.66"
Top cover height: 9CM/3.54
Base width: 18CM/7.09"
Total length: 103CM/40.55"
Top cover hole distance: 12CM/4.72"
Bottom cover hole distance: 15CM/5.91"
Product tube type: horizontal tube
Number of product sections: 3 sections
Accessories: Tie rod lining
Applicable to: 20-inch trolley case "1. Pull-out function: The handle can be easily pulled out to the maximum length, making it convenient to operate and transport the suitcase.
2. Sturdy: The telescopic handle is made of high-quality materials to withstand daily use and ensure long-lasting durability without breaking or bending.
3. Easy to install: The handle is easy to install on the suitcase, and mounting accessories are provided so that you can install it easily and fix it firmly.
4. Ergonomic grip: The handle adopts an ergonomic grip design to provide a comfortable and safe hold when pulling the suitcase.
5. Smooth retraction: With reliable retraction, the handle slides smoothly back to its original position when not in use, saving space and preventing damage.
--
What types of tie rods are there?
Luggage tie rods are roughly divided into built-in tie rods and horizontal tie rods (i.e. external tie rods) according to different installation locations.
What is the difference between built-in tie rods and horizontal tie rods?
Built-in tie rod: fixed with the base, make sure the screw holes on the base are consistent with the holes on the bottom of the original bag.
Horizontal bar tie rod: Use horizontal bar to fix it. Make sure that the screw hole position of the horizontal bar is consistent with the hole position on the back of the original bag.
Three important parameters when purchasing built-in tie rods:
Upper cover width
If the upper cover width and mounting hole positions are consistent with the original upper cover, the new upper cover can be installed directly.
If the width of the upper cover is the same, but the installation hole position is different from the original upper cover, as long as the new upper cover can cover the installation position of the original upper cover, you can re-drill holes in the box for installation. (If you don’t want to drill new holes in the box, you can directly keep the original upper cover and install it on the new tie rod)
Tie rod fixed length. (i.e. the same as the net height of the suitcase (excluding wheels))
Confirm the mounting hole positions of the upper and lower covers of the tie rod.
Precautions:
1. Before purchasing, please determine the type of trolley suitable for the bag.
2. Compare the size of the holes and compare the distribution of the holes. (If the hole positions are inconsistent for installation, you need to drill holes on the base of the tie rod to fit the bag. If you do not want to drill holes, you must ensure that the hole positions are consistent)
3. Determine the fixed length of the tie rod that needs to be replaced (the net height of the suitcase does not include the wheels).
4. Only after the size is confirmed can a perfect replacement be ensured.
Warm reminder: These are DIY replacement repair supplies. Tie rods do not fit all suitcases. If you are not sure whether the size is suitable for your suitcase, you can leave us a message with a picture of your damaged tie rod or a hole diagram of the tie rod and the length and length of the tie rod, and the type of tie rod, and we will find a suitable one as soon as possible. Pull the lever and give you feedback"
Package include:
1 x Luggage Telescopic Handle
"
