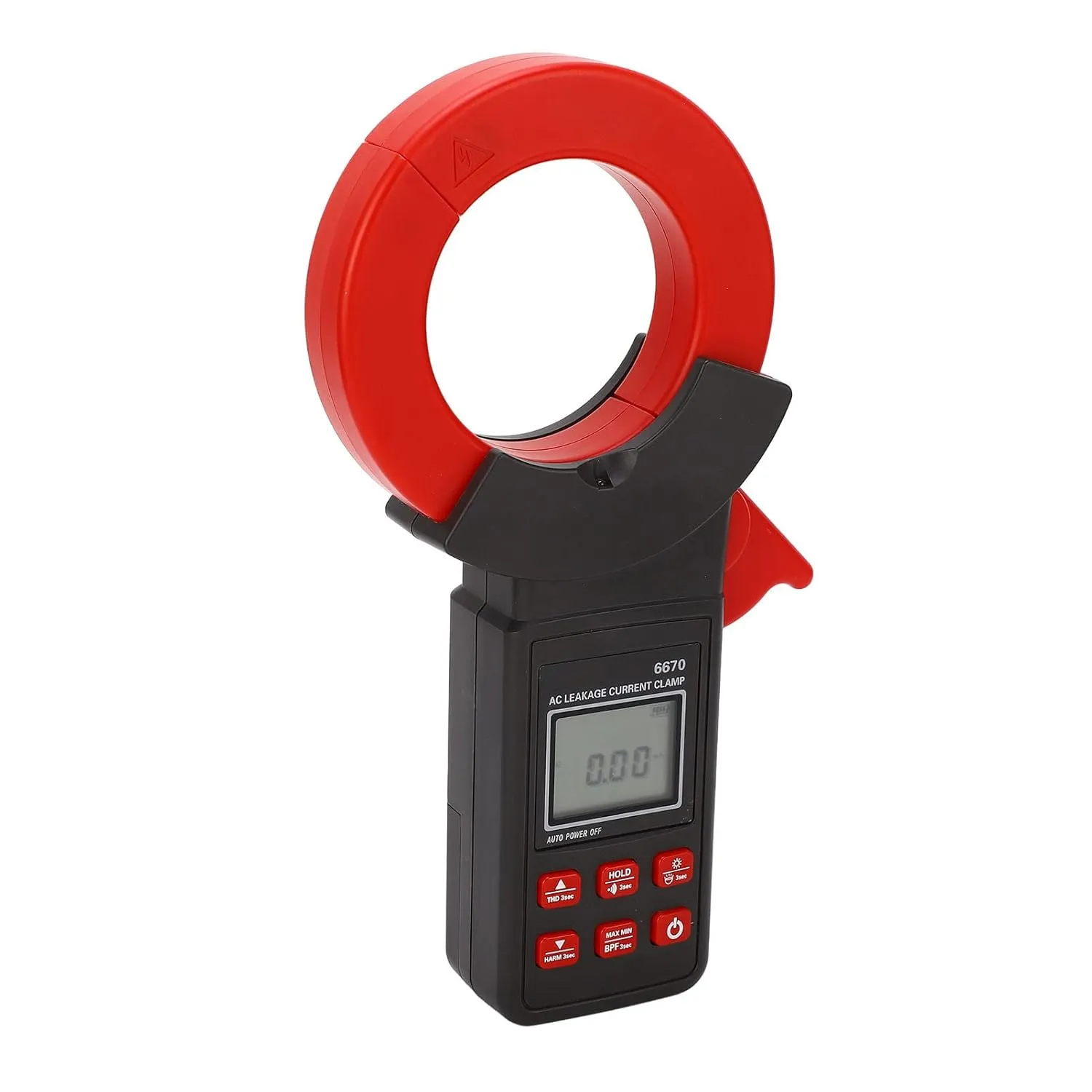

- Precise Current Measuring: AC leakage current meter specifically designed to provide accurate measurements using unique CT and digital integration technology.
- Minimized Interference: The clamp incorporates magnetic shielding technology for less interference from external electromagnetic fields.
- Versatile Functionality: Includes true RMS measurement, filter function, /min/avg value computation, harmonic analysis, distortion rate and others.
- Enhanced Features: Comes with 3.7V 1000mAh rechargeable lithium battery; features backlight, flashlight, data hold and communication.
- Applicability: Ideal for use in fields like electric power, communication, meteorology, railway, oil field, construction, measurement, industrial and mining, and more.
Specification
Item Type: Leakage Ammeter Clamp
Model: ETCR6670
Material: ABS
Battery: Built-in 3.7V 1000mAh lithium battery
Range and Accuracy: Measures from 0.00mA to 1200A with varying degrees of accuracy depending on current level.
Illumination: LCD Backlight and flashlight.
Filtering Function: Range 40Hz-70Hz with filter, 40Hz-1kHz without.
Harmonic Analysis and Distortion Rate: Available for current above 10mA.
Data Management: Stores up to 2000 groups of data via app; shows overflow with OL sign.
Communication: Connect and view test results on your mobile phone using the app.
Smart Power Management: Auto shutdown after roughly 5 minutes of inactivity to save battery; 4-level battery power display.
Environment Requirement: Works in -10℃ to 50℃ under 80%RH; stores in -20℃ to 60℃ under 70%RH.
Insulation Strength: AC 3700V/rms between core and Cover.
How to Use
Simple and direct: Ready to use upon startup.
Package List
1 x Leakage Ammeter
1 x User Manual
1 x USB Cable
1 x Storage Bag
Note
VideoSubtitles
- Package Dimensions : 9.84 x 5.51 x 2.76 inches; 1.47 Pounds
- Date First Available : May 27, 2025
- Manufacturer : Akozon
- Country of Origin : China
